Introduction

[BF disc coupling]

Quick installation coupling,High speed coupling
Large shaft hole containment diaphragm coupling, easy to install, easy to disassemble, good dynamic balance performance, suitable for high speed units;

Disc coupling

-Other special structures can be designed according to customer requirements;

-Coupling material can be selected according to customer requirements;

-The dimensions in the figure can be made according to customer requirements; other technical parameters can be consulted by Bunker Technology Department;

-For units with thermal expansion, the cold pre-tension should be considered during installation to make the flexible components work in a small deformation interval and improve the service life;

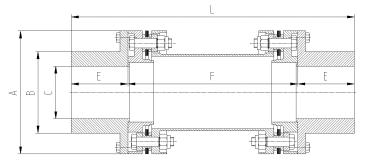

BF型大轴孔包容型膜片联轴器尺寸

Coupling

model

Power/speed

(Kw/rpm)

Nominal

torque

(KNm)

Peak

torque

(KNm)

Maximum

required

speed

(r/min)

A

(mm)

B

(mm)

C(mm)max

E(mm)

F

(mm)

L(mm)

BF115

0.072

0.68

2.4

15000

117

90

60

140

75

290

BF135

0.16

1.52

3.3

12000

137

113

75

140

90

320

BF152

0.22

2.1

6.1

11000

154

128

85

155

105

365

BF175

0.39

3.7

10.8

10000

177

143

95

165

120

405

BF196

0.49

4.6

12.4

9000

198

165

110

205

140

485

BF210

0.54

5.15

14.2

7500

212

180

120

205

155

515

BF231

0.86

8.21

24.1

6700

233

195

130

205

165

535

BF247

1.28

12.22

32

6200

249

210

140

205

180

565

BF272

2.16

20.62

45

5500

274

232

155

225

195

615

BF300

2.9

27.69

52.9

5200

302

255

170

250

205

660

BF302

3.46

33

78

4700

304

255

170

250

205

660

BF333

4.13

39.44

101

4350

335

285

190

285

230

745

BF363

6.6

63

140

4200

365

308

205

300

250

800

BF396

8.5

81.11

197

3900

398

338

225

350

290

930

BF425

11

105

217

3600

427

375

250

360

310

980

BF457

14

133.7

320

3450

459

405

270

400

320

1040

BF493

17

162.3

355

3300

495

435

290

400

340

1080

BF525

21

200.5

390

3200

527

473

315

420

360

1140

BF570

26

248.3

570

3100

572

503

335

450

370

1190































Coupling

model

Tightening

torque

(Nm)

Tota

mass

(Kg)

Torsional

stiffness

KT(Nm/radxE+06)

Moment of

interia(Kgm^2)

Middle section per meter long

Corner misalignment

Axial misalignment

Mass(Kg)

Torsional

stiffness

ΔKT(Nm

/radxE+06)

Moment of interia(Kgm^2)

Maximun

θmax

(deg)

Anqular

stiffness

(Nm/radxE+03)

maximum

(mm)

Axial

force

（N）

BF115

45

11.22

0.0053

0.021

4.7

0.00389

0.00612

0.375

110.3

2

902

BF135

45

16.1

0.0796

0.052

6.0

0.099

0.013

0.375

119.5

2.3

1056

BF152

45

25.64

1.453

0.094

6.9

0.158

0.021

0.375

155.7

2.4

1368

BF175

85

38.6

2.452

0.18

10.4

0.289

0.035

0.375

168.2

2.6

2100

BF196

160

53.6

3.252

0.34

11.8

0.455

0.047

0.375

205.3

2.8

2306

BF210

160

73.6

4.210

0.58

13.5

0.702

0.085

0.375

213.6

3.0

3256

BF231

160

94.5

5.103

0.85

15.1

0.836

0.129

0.375

401.9

3.1

3654

BF247

160

113.8

8.256

1.14

22.6

1.536

0.172

0.375

447.2

3.3

3946

BF272

280

140.5

9.426

1.56

26.5

2.03

0.216

0.375

535.2

3.5

4653

BF300

280

162.6

10.257

2.25

39.5

2.76

0.444

0.375

592.3

3.6

5621

BF302

280

162.6

10.35

2.32

39.5

2.76

0.444

0.25

1989

2.8

6542

BF333

340

215.3

14.94

4.62

46.3

5.422

0.522

0.25

2653

3.0

9326

BF363

540

296.5

30.82

7.21

51.2

7.032

0.755

0.25

3456

3.3

12681

BF396

540

365.5

46.321

10.56

56.1

8.865

0.923

0.25

7864

3.4

13653

BF425

800

453.2

61.523

15.32

71.5

14.65

1.101

0.25

6859

3.6

15782

BF457

800

630.5

70.142

23.54

87.3

16.83

1.522

0.25

6971

3.8

16524

BF493

800

668.5

75.635

42.35

94.6

21.32

2.11

0.25

7865

4.0

18936

BF525

1200

775.2

103.56

52.65

105.3

25.66

2.56

0.25

8654

4.2

19856

BF570

1200

935.3

129.263

66.53

136

40.37

4.03

0.25

8475

4.6

20541
