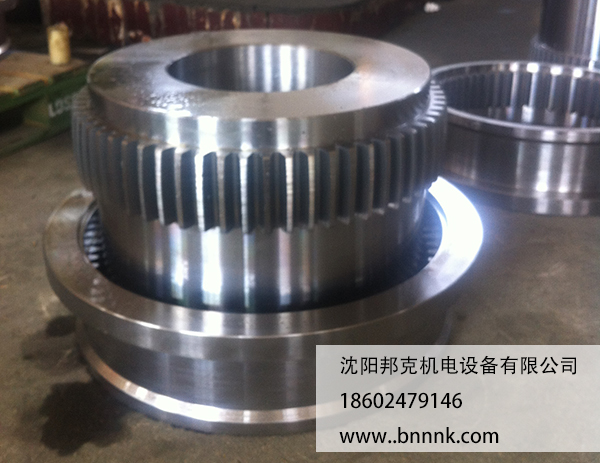

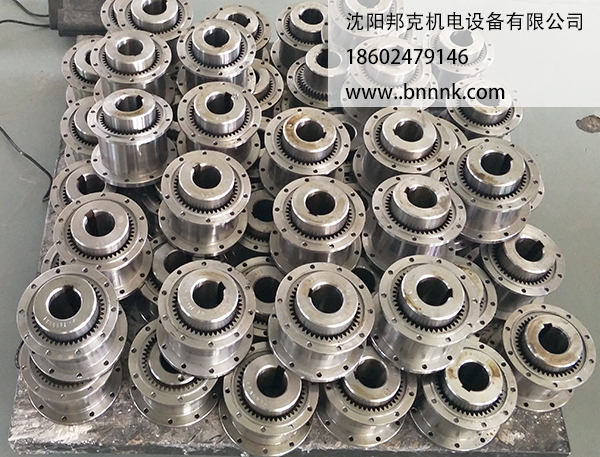

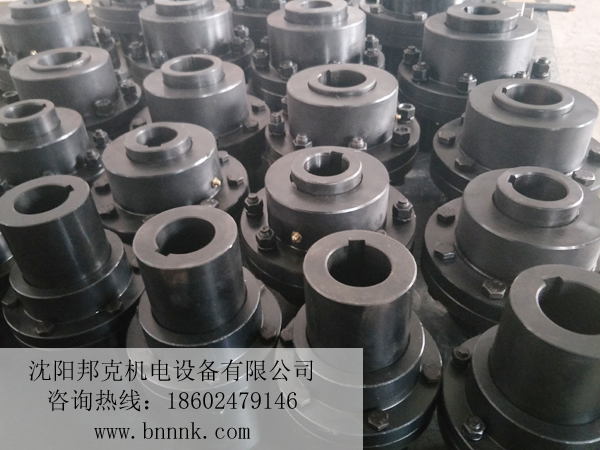

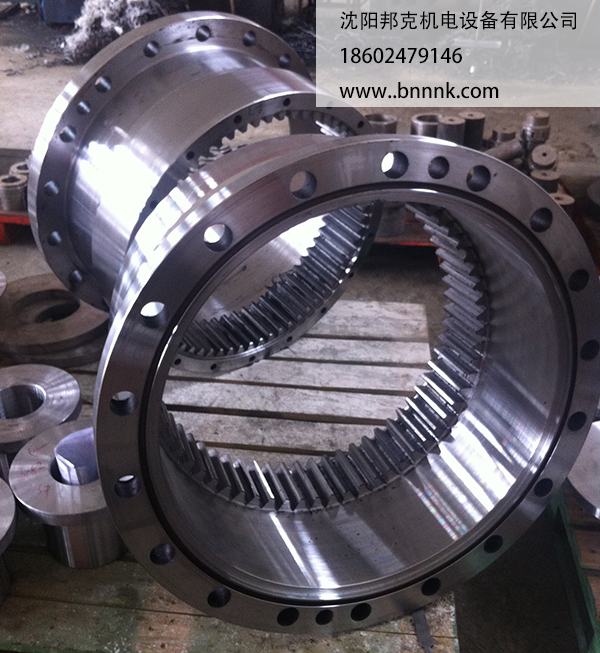

[GIICL drum gear coupling]

Drum type gear coupling, flexible coupling

As the earliest coupling type, the crown gear coupling has its significance. It is suitable for a wide range of applications, with strong correction capability, large transmission torque and high...

Drum gear coupling

-Absorbing ability, axial, angular; coupling picture on 1 page;

-High transmission torque and good rigidity;

-Special structure can be designed according to customer requirements;

- Coupling material can be selected according to customer requirements;

-The dimensions in the figure can be made according to customer requirements; other technical parameters can be consulted by Bunker Technology Department;

GIICL鼓形齿联轴器尺寸

Coupling model	Nominal torque kN·m	Allowable speed rpm	Shaft hole diameter d1、d2、d3	Shaft hole length L		D	D1	D2	C	H	A	B	e	Moment of intertia kg·m²	Mass kg
				Y	J1
GⅡCL1	0.4	4000	16,18,19	42	—	103	71	50	8	2	36	76	38	0.0035	5.1
			20,22,24	52	38										3
			25,28	62	44										3.1
			30,32,35	82	60									0.00375	3.6
GⅡCL2	0.71	4000	20,22,24	52	38	115	83	60	8	2	42	88	42	0.00575	4.9
			25,28	62	44									0.0055	4.5
			30,32,35,38	82	60									0.006	5.1
			40,42,45	112	84									0.00675	6.2
GⅡCL3	1.12	4000	22,24	52	38	127	95	75	8	2	44	90	42	0.0105	7.5
			25,28	62	44									0.01	7
			30,32,35,38	82	60										6.9
			40,42,45,48, 50,55,56	112	84									0.0113	8.6
GⅡCL4	1.8	4000	38	82	60	149	116	90	8	2	49	98	42	0.02	10.1
			40,42,45,48, 50,55,56	112	84									0.0223	12.2
			60,63,65	142	107									0.0245	14.5
GⅡCL5	3.15	4000	40,42,45,48, 50,55,56	112	84	167	134	105	10	2.5	55	108	42	0.0378	16.4
			60,63,65, 70,71,75	142	107									0.0433	19.6
GⅡCL6	5	4000	45,48,50,55,56	112	84	187	153	125	10	2.5	56	110	42	0.0663	22.1
			60,63,65, 70,71,75	142	107									0.075	26.5
			80,85,90	172	132									0.0843	31.2
GⅡCL7	7.1	3750	50,55,56	112	84	204	170	140	10	2.5	60	118	42	0.103	27.6
			60,63,65, 70,71,75	142	107									0.115	33.1
			80,85,90,95	172	132									0.1298	39.2
			100(105)	212	167									0.151	47.5
GⅡCL8	10	3300	55,56	112	84	230	186	155	12	3	67	142	47	0.167	35.5
			60,63,65,70, 71,75	142	107									0.188	42.3
			80,85,90,95	172	132									0.21	49.7
			100,110(115)	212	167									0.241	60.2
GⅡCL9	16	3000	60,63,65,70, 71,75	142	107	256	212	180	12	3	69	146	47	0.316	55.6
			80,85,90,95	172	132									0.356	65.6
			100,110,120,125	212	167									0.413	79.6
			130(135)	252	202									0.47	95.8
GⅡCL10	22.4	2650	65,70,71,75	142	107	287	239	200	14	3.5	78	164	47	0.511	72
			80,85,90,95	172	132									0.573	84.4
			100,110,120,125	212	167									0.659	101
			130,140,150	252	202									0.745	119
GⅡCL11	35.5	2350	70,71,75	142	107	325	276	235	14	3.5	81	170	47	1.454	97
			80,85,90,95	172	132									1.096	114
			100,110,120,125	212	167									1.235	138
			130,140,150	252	202									1.34	161
			160,170(175)	302	242									1.588	189

Coupling model	Nominal torque kN·m	Allowable speed rpm	Shaft hole diameter d1、d2、d3	Shaft hole length L		D	D1	D2	C	H	A	B	e	Moment of intertia kg·m²	Mass kg
				Y	J1
GⅡCL12	50	2100	75	142	107	362	313	270	16	4	89	190	49	1.623	128
			80,85,90,95	172	132									1.828	150
			100,110,120,125	212	167									2.113	205
			130,140,150	252	202									2.4	213
			160,170,180	302	242									2.728	248
			190,200	352	282									3.055	285
GⅡCL13	71	1850	150	252	202	412	350	300	18	4.5	98	208	49	3.925	269
			160,170,180(185)	302	242									4.425	315
			190,200,220(225)	352	282									4.918	360
GⅡCL14	112	1650	170,180(185)	302	242	462	418	335	22	5.5	172	296	63	8.025	421
			190,200,220	352	282									8.8	476
			240,250	410	330									9.725	544
GⅡCL15	180	1500	190,200,220	352	282	512	465	380	22	5.5	182	316	63	14.3	608
			240,250,260	410	330									15.85	696
			280(285)	470	380									17.45	786
GⅡCL16	250	1300	220	352	282	580	522	430	28	7	209	354	67	23.925	799
			240,250,260	410	330									26.45	913
			280,300,320	470	380									29.1	1027
GⅡCL17	355	1200	250,260	410	330	644	582	490	28	7	198	364	67	43.095	1175
			280(290),300,320	470	380									47.525	1322
			340,360(365)	550	450									53.725	1532
GⅡCL18	500	1050	280,295,300,320	470	380	726	654	540	28	8	222	430	75	78.525	1698
			340,360,380	550	450									87.75	1948
			400	650	540									99.5	2278
GⅡCL19	710	950	300,320	470	380	818	748	630	32	8	232	440	75	136.75	2249
			340(350),360,380(390)	550	450									153.75	2591
			400,420,440,450,460	650	540									715.5	3026
			(470)
GⅡCL20	1000	800	360,380(390)	550	450	928	838	720	32	10.5	247	470	75	261.75	3384
			400,420,440,450,460	650	540									299	3984
			480,500
			530(540)	800	680									360.75	4430
GⅡCL21	1400	750	400,420,440,450,460	650	540	1022	928	810	40	11.5	255	490	75	468.75	4977
			480,500
			530,560,600	800	680									561.5	6152
GⅡCL22	1800	650	450,460,480,500	650	540	1134	1036	915	40	13	262	510	75	753.75	6318
			530,560,600,630	800	680									904.75	7738
			670,680	900	780
GⅡCL23	2500	600	530,560,600,630	800	680	1282	1178	1030	50	14.5	299	580	80	1517	10013
			670(700),710,750(770)	900	780									1725	11553
GⅡCL24	3550	550	560,600,630	800	680	1428	1322	1175	50	16.5	317	610	80	2486	12915
			670(700),710,750	900	780									2838.5	15015
			800,850	1000	880									3131.75	16615
GⅡCL25	4500	460	670(700),710,750	900	780	1644	1538	1390	50	19	325	620	80	5174.25	19837
			800,850	1000	880									5836.5	22381
			900,950	—	980									6413	24765
			1000(1040)	—	1100									7198.25	27797
