Introduction

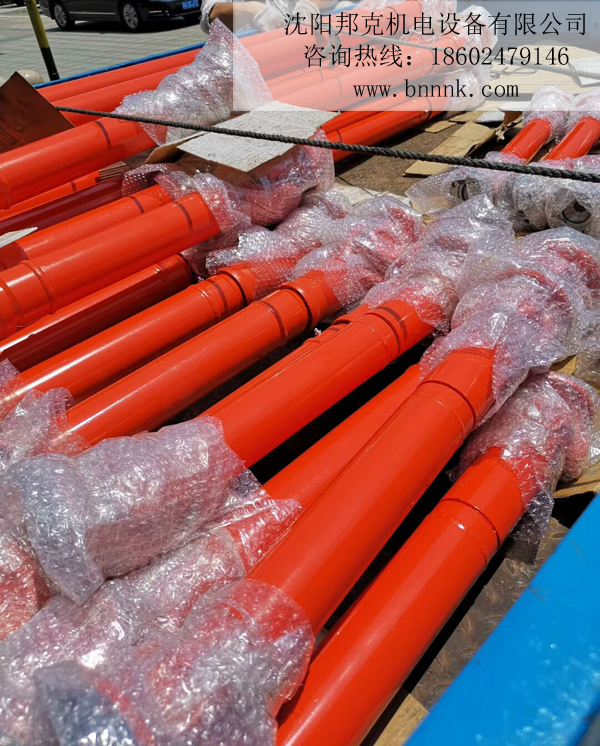

[SWC-BH universal coupling]

Automobile drive shaft coupling

Standard telescopic welded universal joints are widely used in automotive and industrial applications. They have large transmission axis and long service life and are widely used in the market...

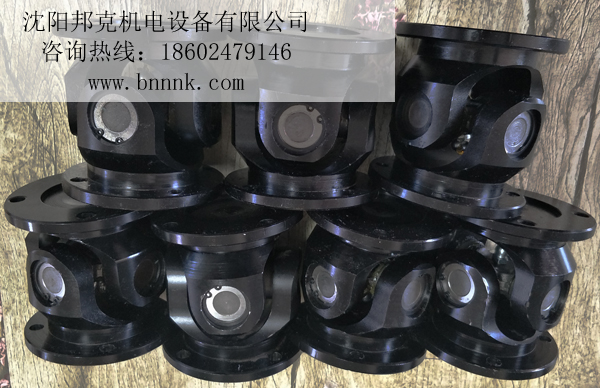

Universal coupling

-Mainly used in rolling machinery, hoisting transport machinery and other heavy machinery, connecting two different axis drive shaft systems, the rotary diameter is 58-620mm, the transmission nominal torque is 0.15~1000kN·m, the axis angle is ≤25°;

-Reasonable structure, safe and reliable use, the use of integral fork head eliminates the weak link of the bolt compression bearing seat (cover), completely avoids the common malignant damage caused by bolt loosening or breaking, and the service life is better than other types. The shaft is increased by 30% to 50%;

-High carrying capacity;

-Transmission efficiency is up to 98.6%, used for high-power transmission, energy saving is remarkable, and power consumption can be reduced;

-The transmission is stable and the noise is low. The general noise is 30~40dB(A);

- Tf—the allowable torque according to the fatigue strength under alternating load, Lmin—the minimum length after shortening, L—installation length, determined as needed;

标准伸缩式万向联轴器尺寸

Coupling model	Swing diameter D/ mm	Nominal torque Tn/ kN·m	Axis chamfer β(°)	Fatigue torque Tf/ kN ·m	Expansion amount Ls	Size（mm）										Moment of inertia(I) kg·m²		Mass G（kg）
Coupling model	Swing diameter D/ mm	Nominal torque Tn/ kN·m	Axis chamfer β(°)	Fatigue torque Tf/ kN ·m	Expansion amount Ls	Lmin	D1 js11	D2 (H7)	D3	Lm	n-d	k	t	b (h9)	g	Lmin	increase 100 mm	Lmin	increase 100 mm
SWC58BH	58	0.15	≤35	0.075	35	325	47	30	38	35	4-5	3.5	1.5	—	—	—	—	2.2	0.26
SWC65BH	65	0.25		0.125	40	360	52	35	42	40	4-6	4.5	1.7					3	0.29
SWC75BH	75	0.4		0.2	40	395	62	42	50	45	6-6	5.5	2					5	0.35
SWC90BH	90	0.75		0.375	45	435	74.5	47	54	50	4-8	6	2.5					6.6	0.35
SWC100BH	100	1.25	≤25	0.63	55	390	84	57	60	55	6-9	7	2.5			0.0044	0.00019	6.1	0.35
SWC120BH	120	2.5		1.25	80	485	102	75	70	65	8-11	8	2.5			0.0109	0.00044	10.8	0.55
SWC150BH	150	5		2.5	80	590	130	90	89	80	8-13	10	3			0.0423	0.00157	24.5	0.85
SWC180BH	180	12.5		6.3	100	810	155	105	114	110	8-17	17	5			0.175	0.007	70	2.8
SWC200BH	200	35.5	≤15	18	120	900	170	120	140	120	8-17	18	5	28	8	0.3765	0.0716	110	3.5
SWC225BH	225	40		20	140	920	196	135	152	120	8-17	20	5	32	9	0.538	0.0234	122	4.9
SWC250BH	250	63		31.5	140	1035	218	150	168	140	8-19	25	6	40	12.5	0.966	0.0277	172	5.3
SWC285BH	285	90		45	140	1190	245	170	194	160	8-21	27	7	40	15	2.011	0.051	263	6.3
SWC315BH	315	125		63	140	1315	280	185	219	180	10-23	32	8	40	15	3.605	0.0795	382	8
SWC350BH	350	180		90	150	1410	310	210	267	194	10-23	35	8	50	16	7.053	0.2219	582	15
SWC390BH	390	250		125	170	1590	345	235	267	215	10-25	40	8	70	18	12.164	0.2219	738	15
SWC440BH	440	355		180	190	1875	390	255	325	260	16-28	42	10	80	20	21.42	0.4744	1190	21.7
SWC490BH	490	500		250	190	1985	435	275	325	270	16-31	47	12	90	22.5	32.86	0.4744	1452	21.7
SWC550BH	550	710		355	240	2300	492	320	426	305	16-31	50	12	100	22.5	68.92	1.357	2380	34
